Reaching the highest levels of quality
The Simport Cryovial® Family is the most complete line of cryogenic vials available today. Designed for storing cells, blood, serum and other biological fluids at temperatures as low as –196 °C, these sturdy polypropylene vials offer a high level of chemical resistance.
As described in the following pages, they are available in 3 different configurations and in 5 sizes from 1.2 ml to 5 ml. A large white marking area and printed graduations facilitate sample identification. Some models are free-standing while some others have only a round bottom. Self-standing vials have a locking base allowing opening and closing with only one hand while vials are used with the Simport Workstation.
One important feature in the Simport Cryovial® design is being able to manufacture both the tube and cap from the same plastic, ensuring the same expansion coefficient, therefore a lasting seal.
Color coding is made easy simply by inserting a CapinsertTM in the cap. A choice of 11 colors is available. Five models of Storage Boxes are available to accommodate 25, 81 or 100 Cryovial® tubes of all sizes. These boxes are made of polycarbonate for high mechanical strength and resistance to extreme temperature changes.

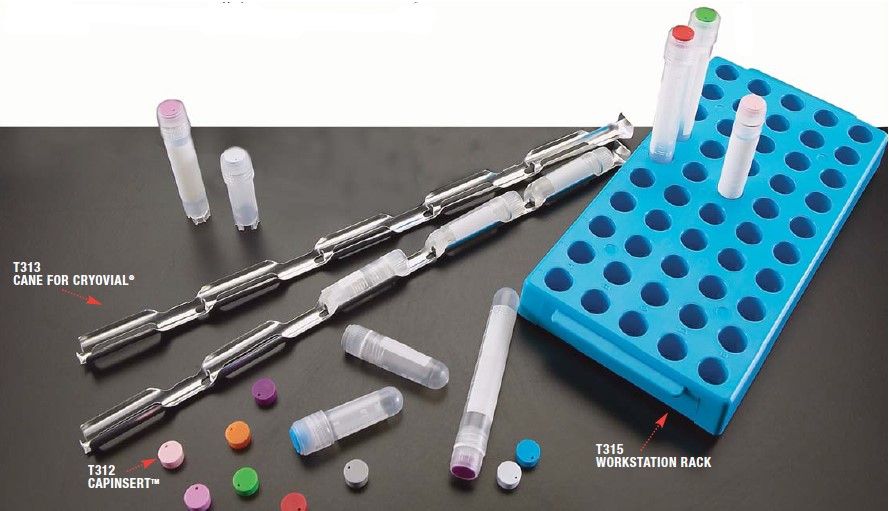

T312
CAPINSERT™ for CRYOVIAL® TUBES
Made of polypropylene
Color coded inserts fit precisely into the cap of the Cryovial® for color identification.
| Cat. # | Color | Qty/Bag | Cat.# | Color | Qty/Bag |
|---|---|---|---|---|---|
| T312-1 | White | 500 | T312-8 | Tan | 500 |
| T312-2 | Blue | 500 | T312-9 | Gray | 500 |
| T312-3 | Red | 500 | T312-10 | Lilac | 500 |
| T312-4 | Green | 500 | T312-11 | Burnt orange | 500 |
| T312-5 | Yellow | 500 | T312-13 | Violet | 500 |
| T312-7 | Assortment above colors | 5 bags of 100 | T312-14 | Pink | 500 |
T313
CANE for CRYOVIAL® TUBES
Made of aluminum
For storage of up to five 1.2 or 2 ml Simport Cryovial® tubes in liquid nitrogen containers such as Dewar flasks.
| Cat. # | Length | Qty/Pk | Qty/Cs |
|---|---|---|---|
| T313 | 290 mm (11 5/16 in.) | 12 | 48 |
T315
CRYOVIAL® WORKSTATION RACK
Made of polypropylene

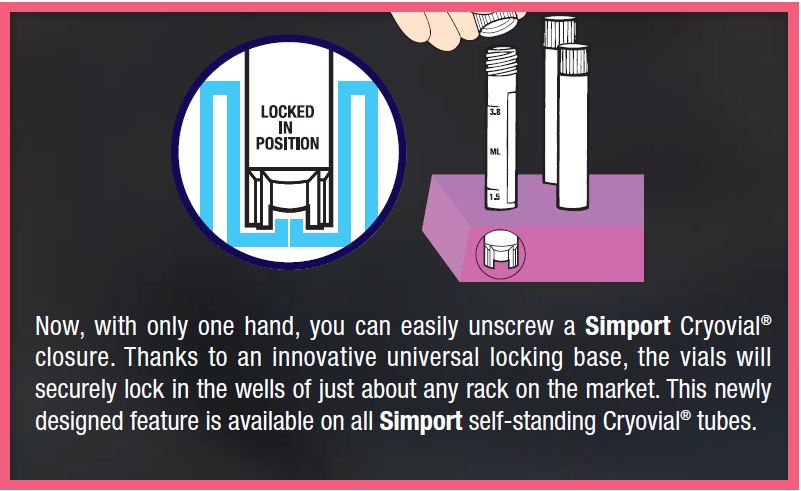

This handy autoclavable rack can hold up to 50 cryogenic vials. Now with one hand, you can easily unscrew a Simport Cryovial® closure. Thanks to an innovative universal locking system, the vials will securely lock in each well and will not turn. Each position is identified with an alphanumeric index. Strong handles make it easy and safe to carry. It is supported by five anti-skid rubber feet. The rack is compact and stackable. Available in three attractive colors.
Size: 10 cm x 20 cm x 25 mm H. (4 x 8 x 1 in. H.)
| Cat. # | Length | Qty/Cs |
|---|---|---|
| T315-2 | Blue | 4 |
| T315-3 | Red | 4 |
| T315-10 | Lilac | 4 |
